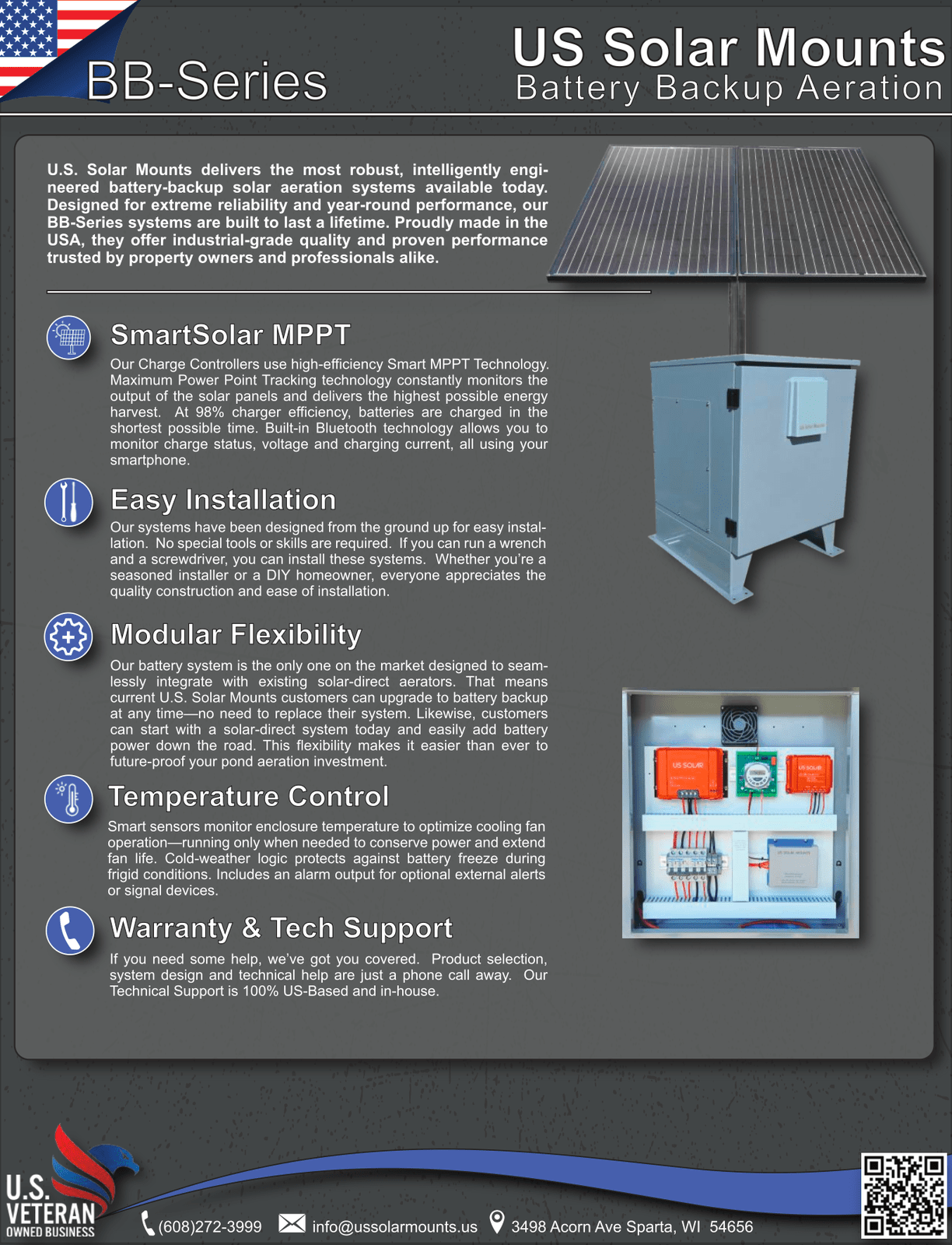

Reliable Power, Day and Night
Engineered by certified solar professionals, our Back-up Battery Module delivers dependable, industrial-grade performance for solar aeration systems. With a powerful 48-volt battery bank, it ensures uninterrupted aeration for up to three full days without sunlight, keeping your pond or lake healthy through nights, storms, and extended cloudy conditions.
Built for longevity and minimal maintenance, this system incorporates advanced technology such as MPPT solar charge control with Bluetooth, digital time clock, and automatic ventilation. These features give you complete control over daily run times while protecting the system from overheating and over-discharge.
Our enclosures are second to none — welded to exacting standards, fitted with locking hasps for security, and finished with a durable powder coat that holds up to the elements. Inside, the control panel is cleanly assembled and fully tested to provide years of reliable, trouble-free operation.
From the easy-clean magnetic air intake to stainless steel hardware and screened vents, every detail reflects our commitment to quality, innovation, and American craftsmanship.
Our Back-up Battery Module requires two solar panels in order to generate enough power to recharge the batteries. If you are adding this module to an existing system, please give us a call to review your existing system before purchasing the Back-up Battery Module —
-
Power & Electrical
- Solar modules: two USA-made mono-crystalline high-efficiency
- Charge controller: MPPT Tracking w/bluetooth
- Batteries: Four 100AH ADM included (125AH available)
- Circuit protection: individual thermal-magnetic circuit breakers
- Low voltage protection: low-voltage disconnect with automatic reconnect
- Run time control: programmable digital time clock
Thermal Management
- Compressor cooling: automatic active ventilation
- High-temp limit: yes, with automatic restart
- Low-temp limit: yes, battery freeze protection with automatic restart
- Alarm outputs: yes, normally open dry contacts for external alarm devices
Mechanical
Battery Enclosure
- Material: all welded laser cut steel
- Finish: backed-on powder coat
- Hardware: stainless steel
- NEMA Rating: 3R / 4X / 12
- Weight: 120 lbs. without batteries
- Dimensions: 22" wide x 22.5" deep x 30" high

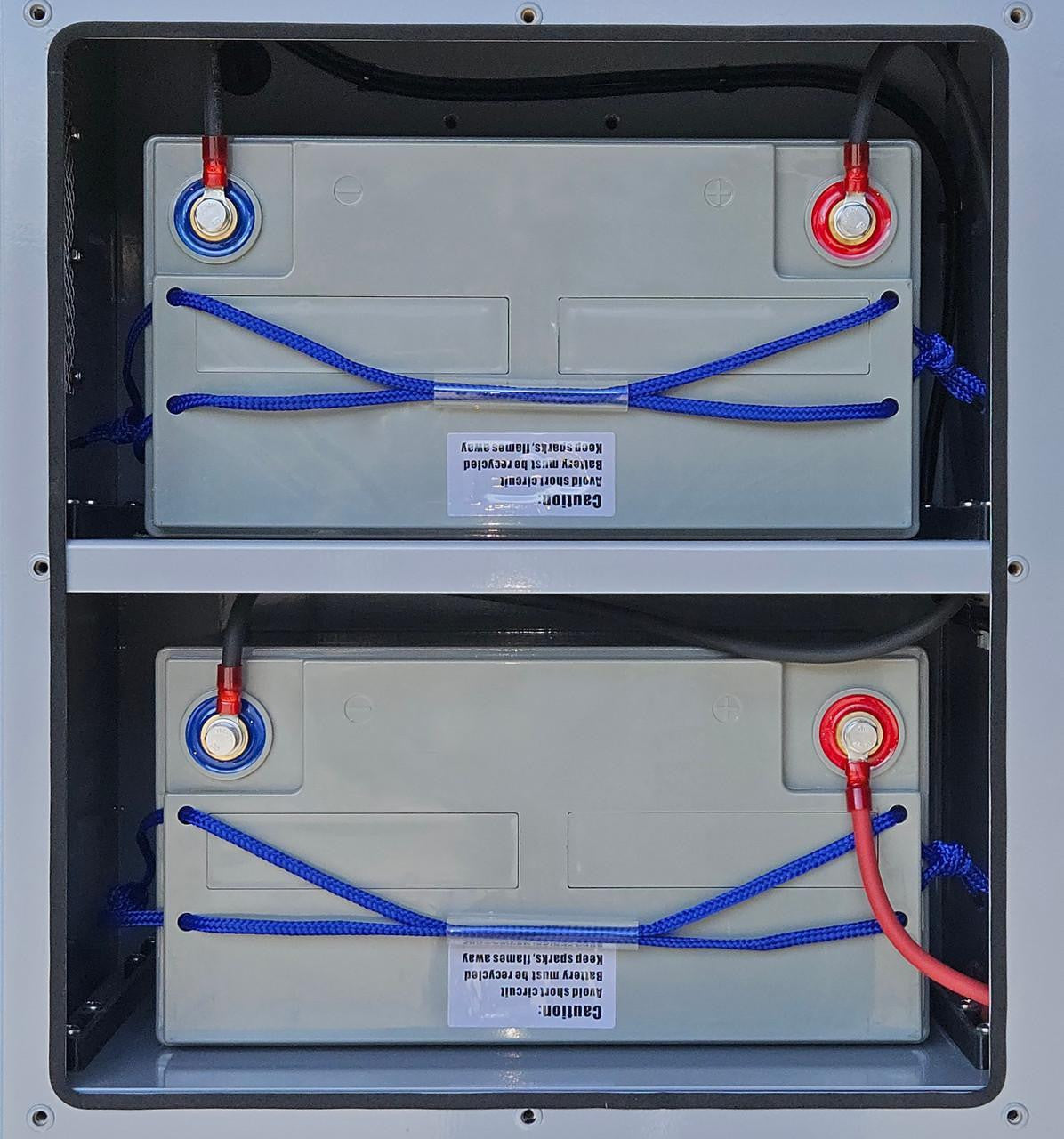

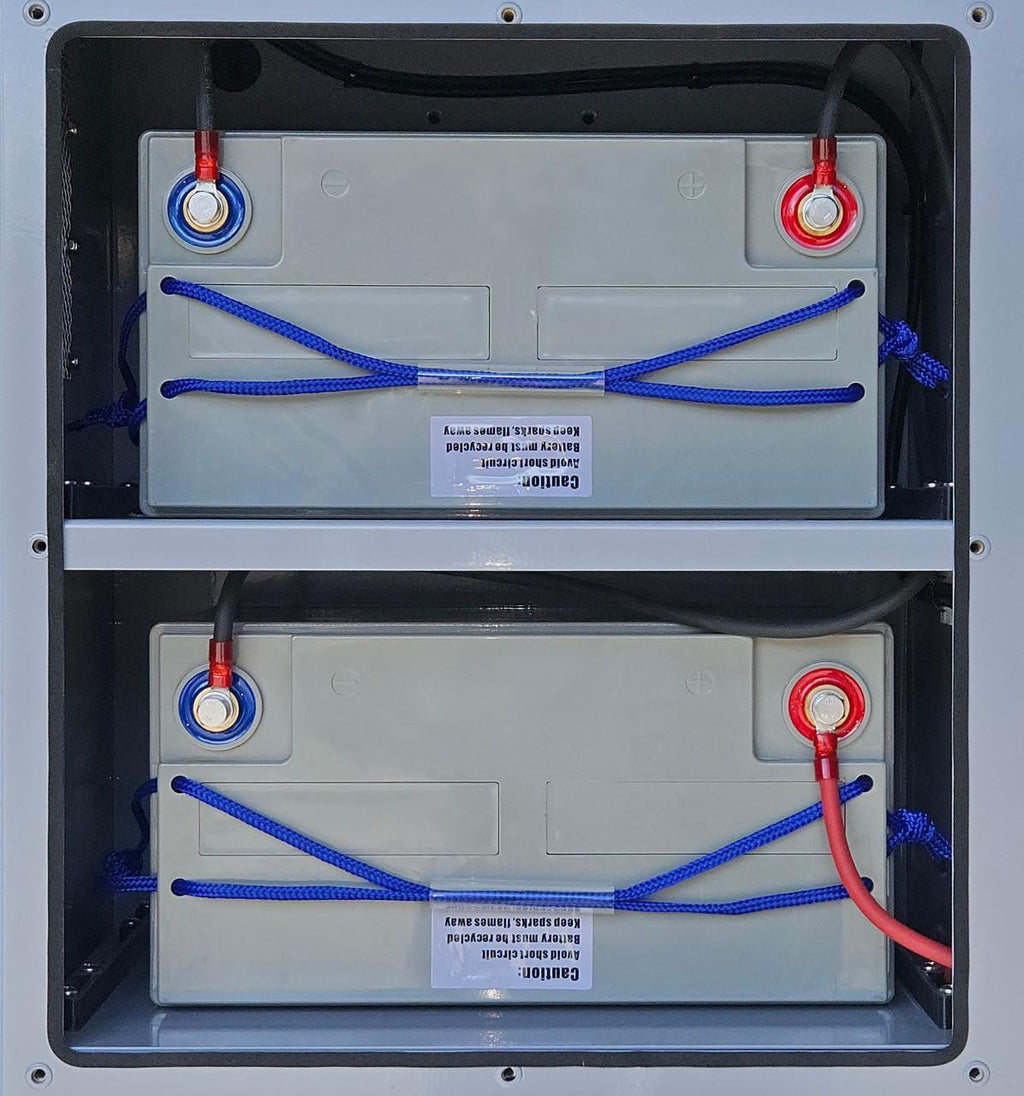

High-Efficiency 48V System with 4 AGM Batteries
Our industry-leading 48-volt system uses 4 AGM batteries—double what most competitors offer—for extended runtime, better efficiency, and reliable operation even in tough conditions.

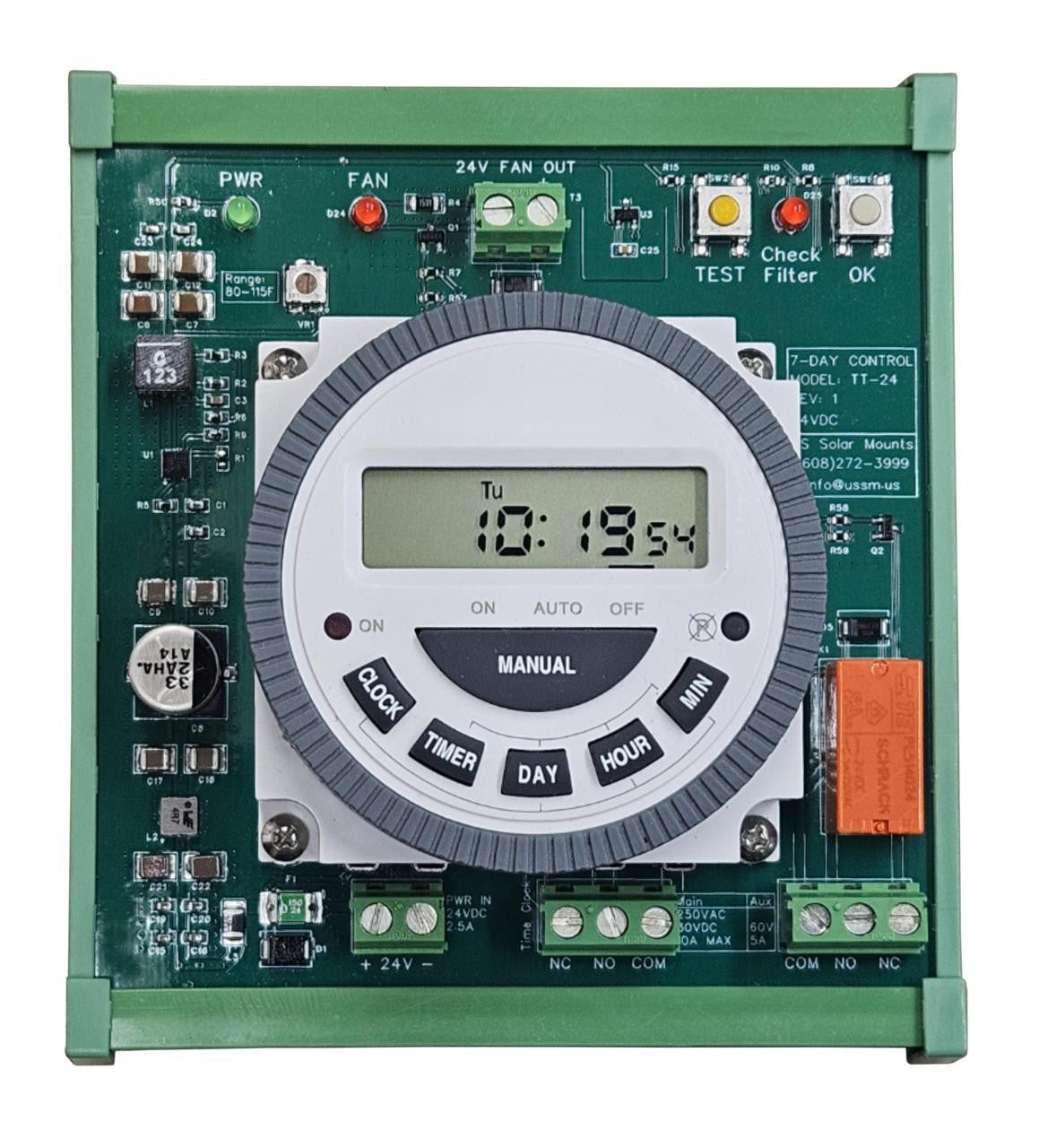

Smart Controller with Time Clock & Fan Control
Our proprietary controller lets you schedule run times and automatically manages fan operation, boosting battery life and year-round performance.
Optional Slow-Start Controller
Gently powers up your system over two weeks to prevent fish stress or kill — a first-of-its-kind feature in solar aeration!

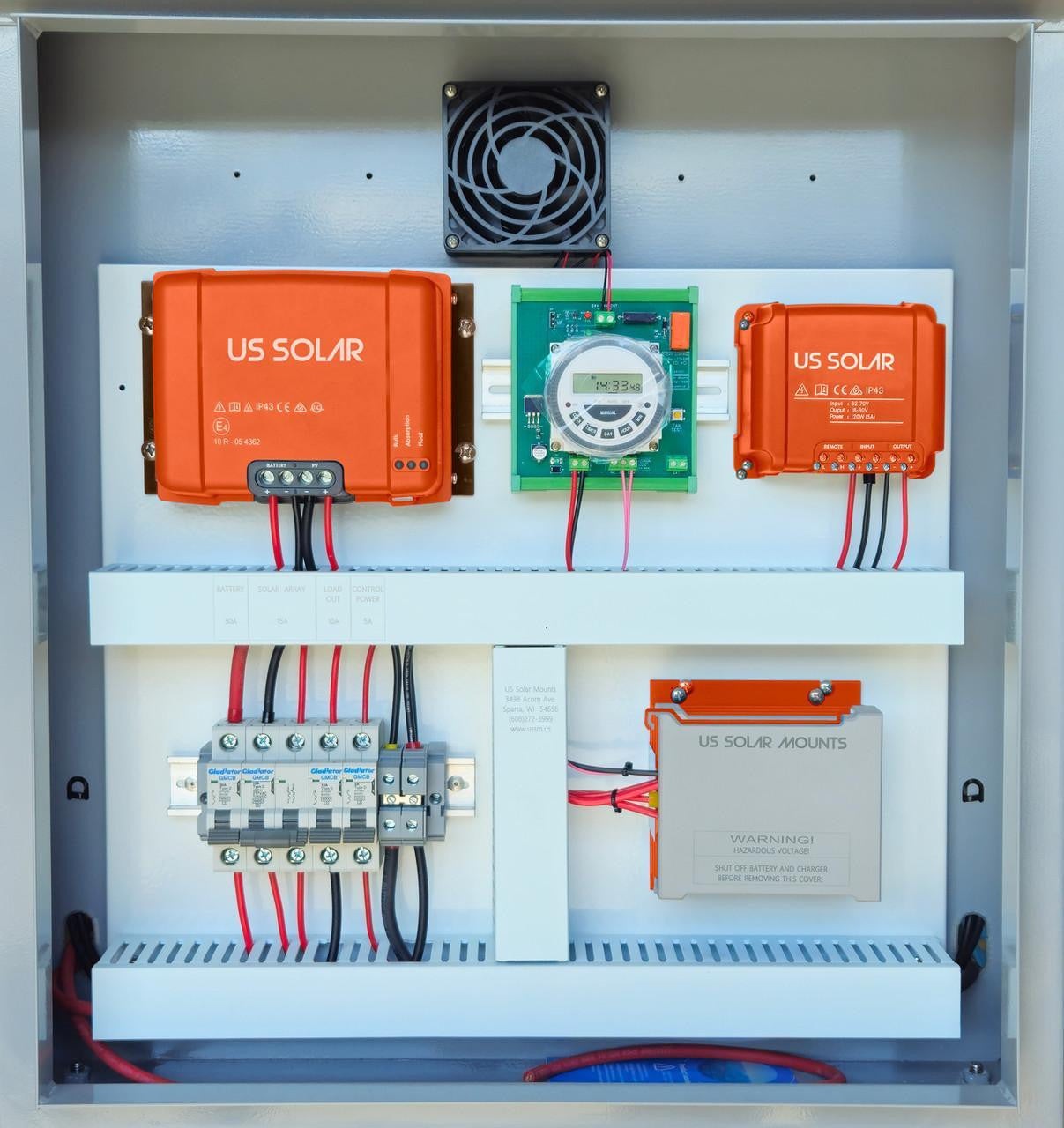

Professional-Grade Control Section
Built with industrial-quality components and organized wire management for clean, safe, low-maintenance operation.

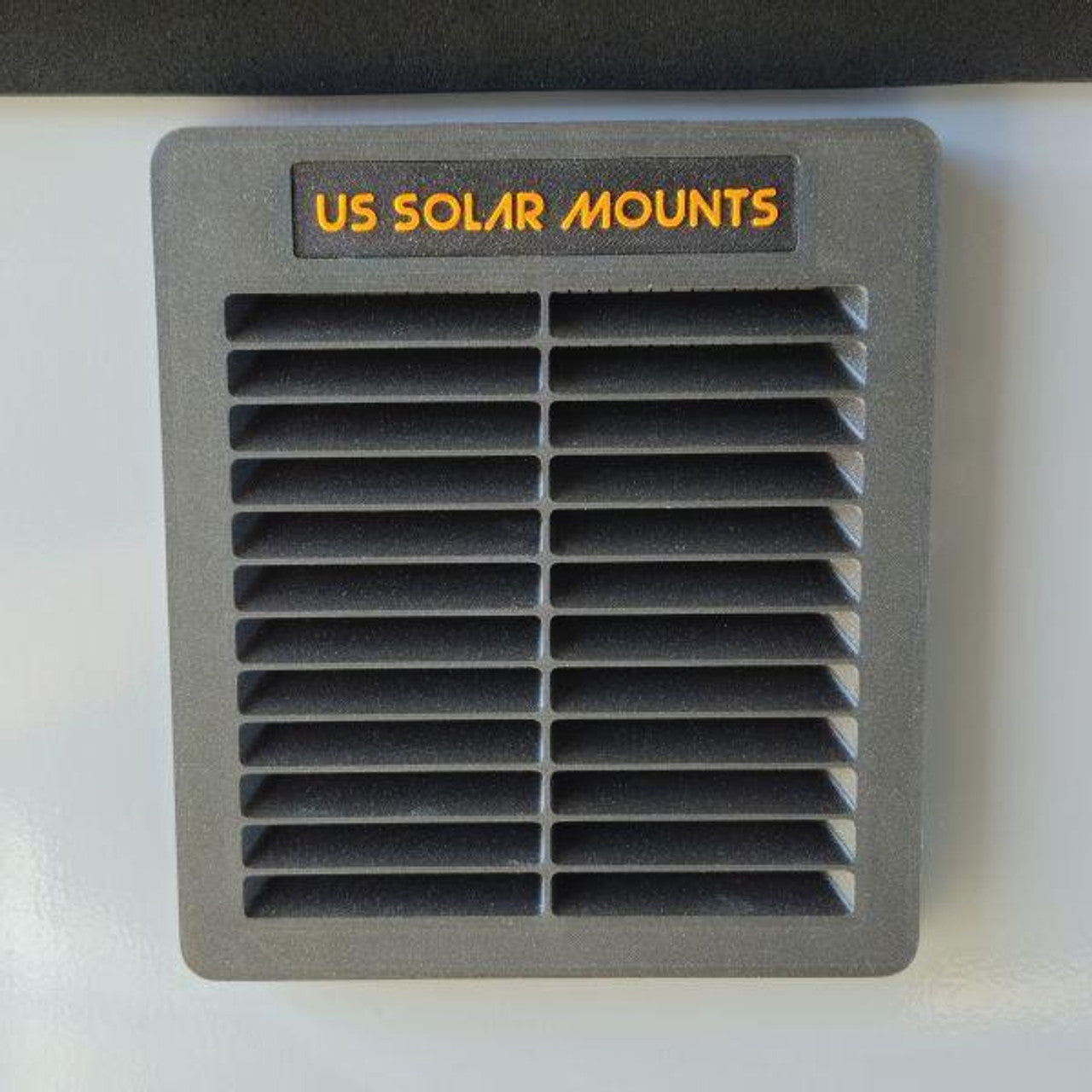

Tool-Free Magnetic Air Intake Louver
Quick, easy maintenance with our exclusive magnetic louver—remove, clean, and reinstall in seconds without tools.

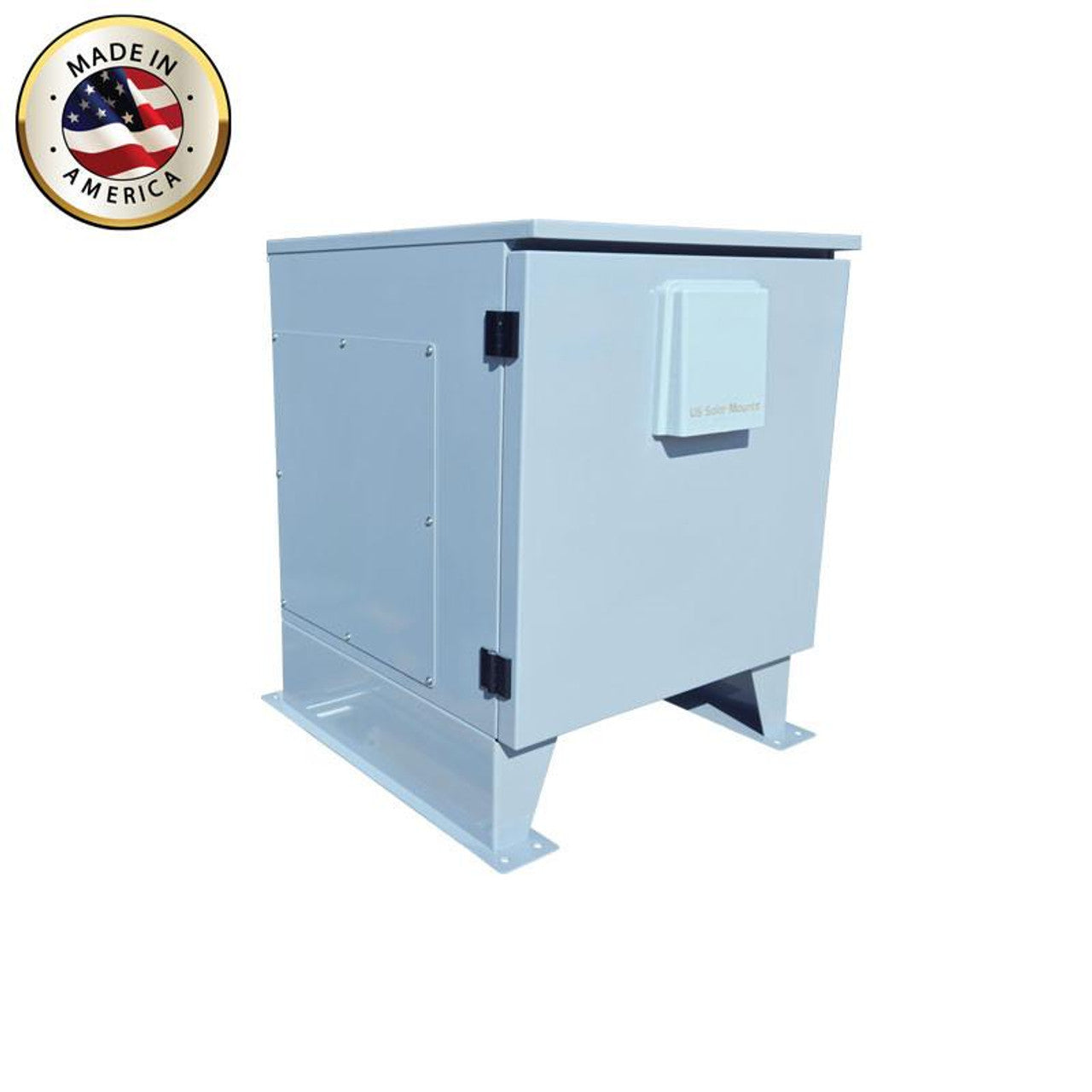

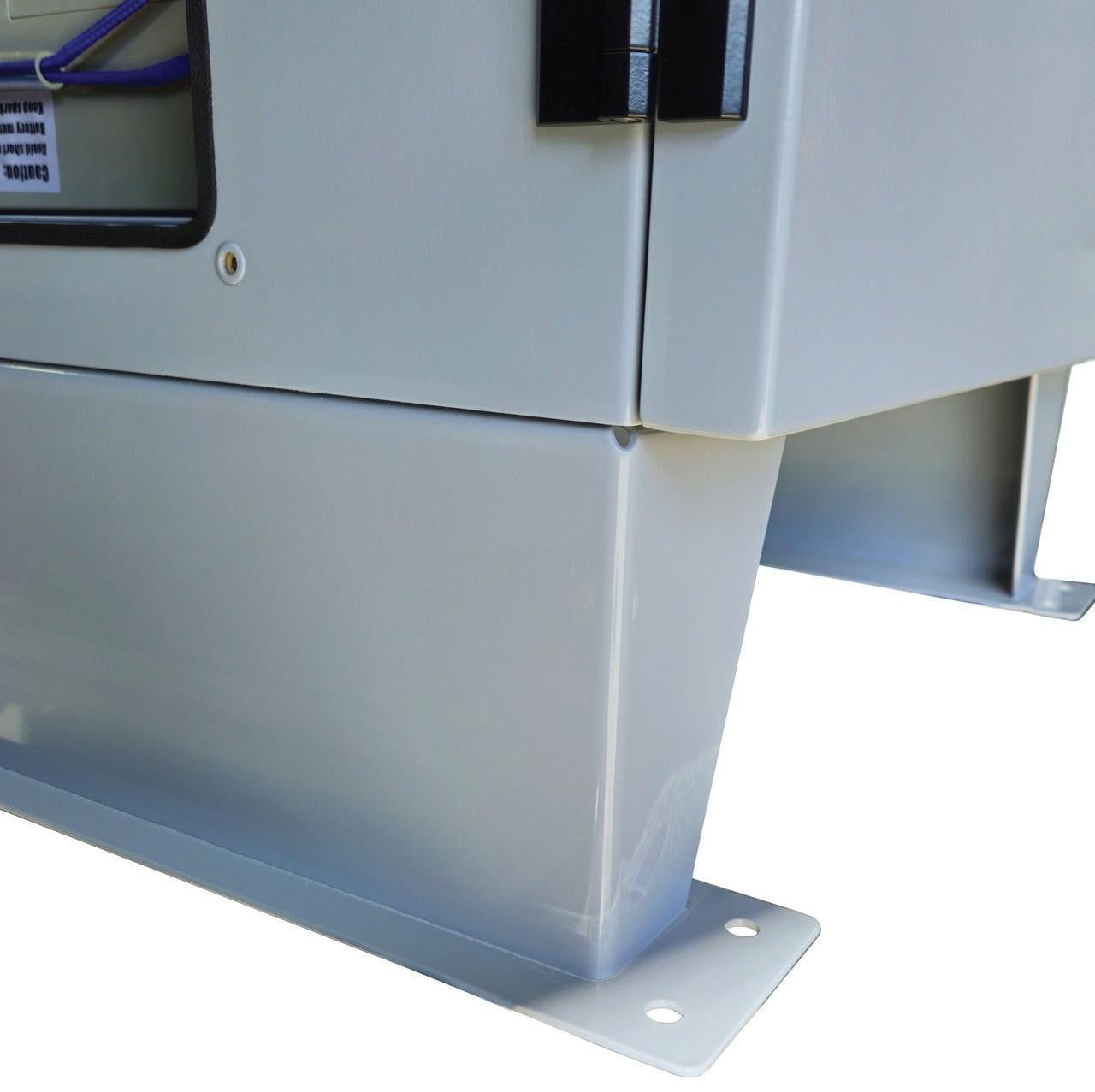

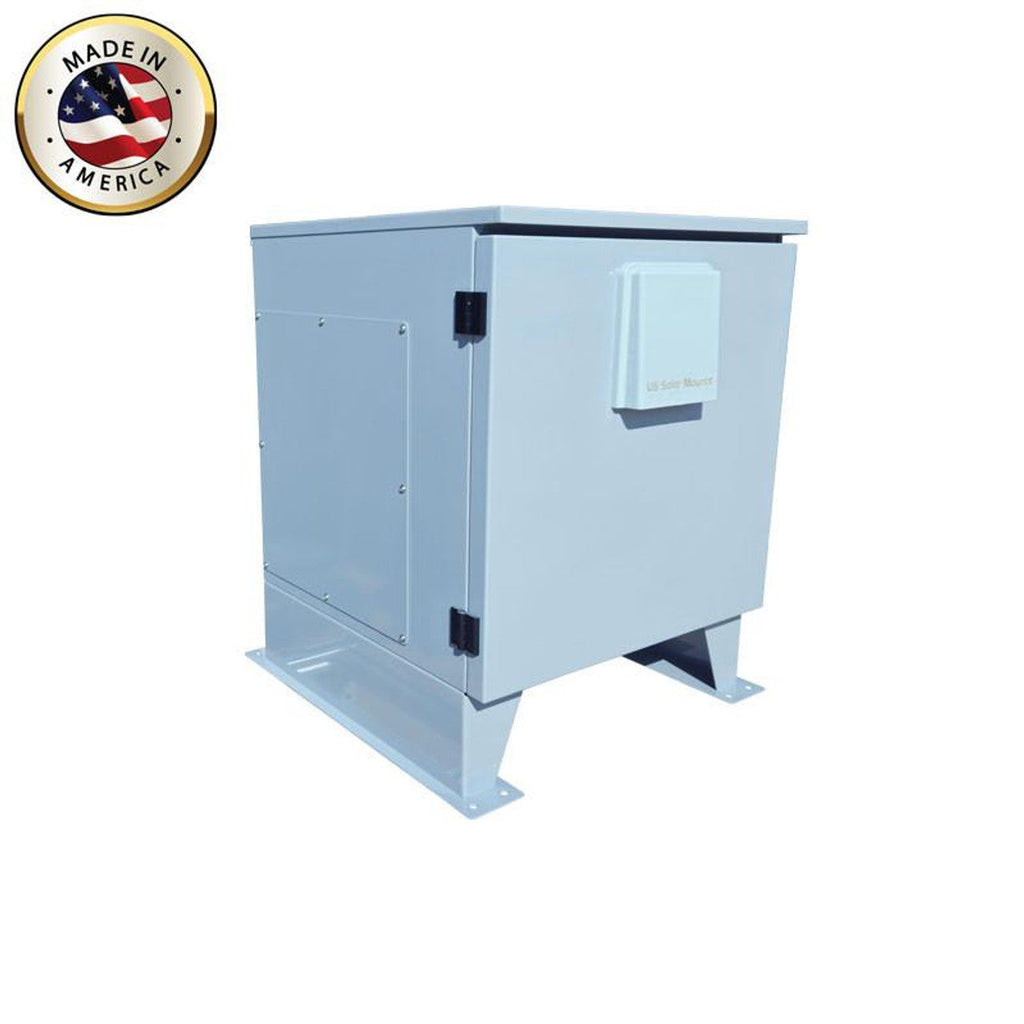

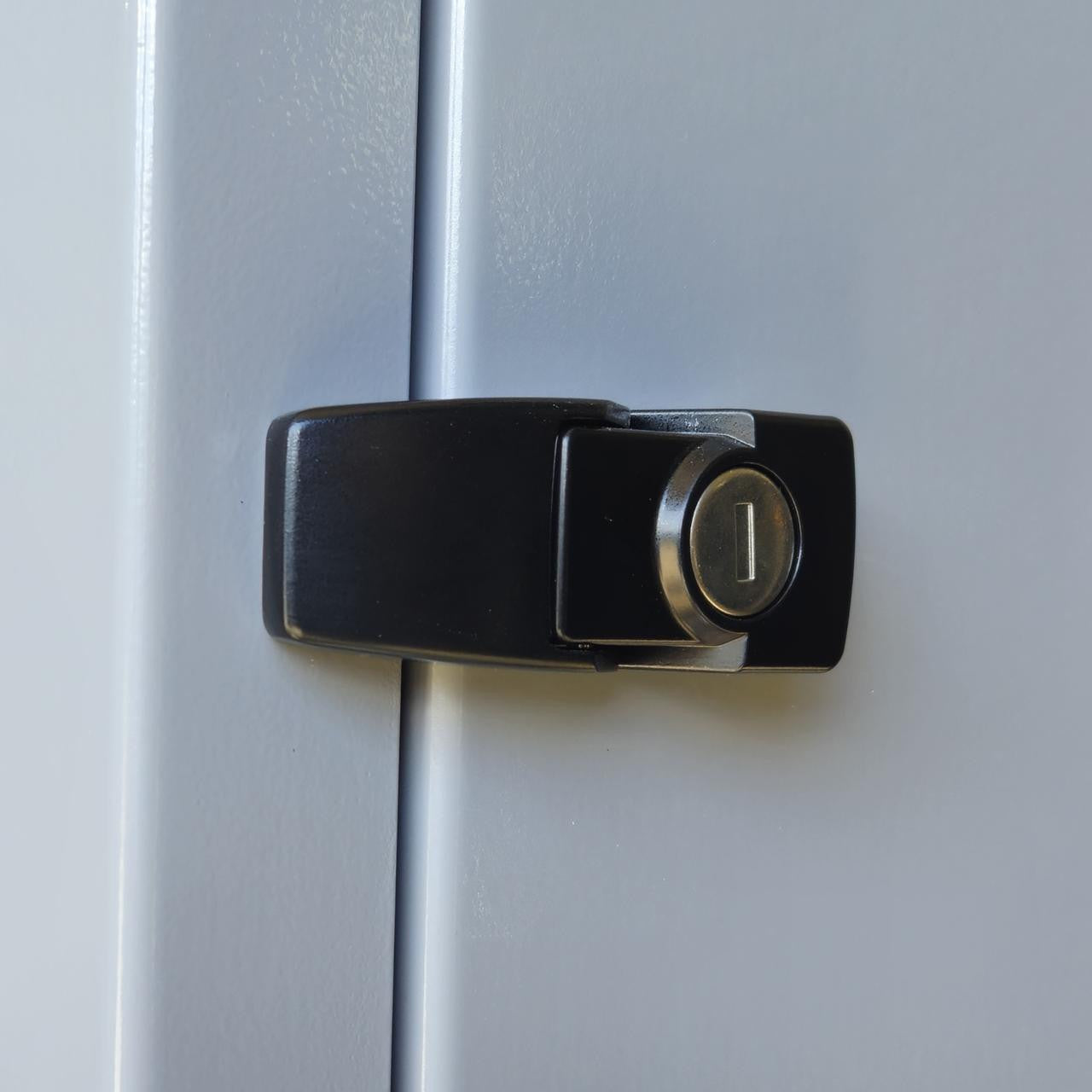

Durable Enclosure
Includes locking hardware and a tough powder-coated finish for lasting protection.
The package includes:
- Enclosure
- 4 AGM deep-cycle batteries, 120 amp-hours each
- All cables & connectors
- Smart controller with digital timer
- MPPT charge controller
- Low voltage disconnect
- Complete instructions
- Full tech support
Warranty
| Motor & Pump | 5 Years |
| Non-Electric Fountain Components | 1 Year |
| Power Cable | 1 Year |
| Light Fixtures & Brackets | 2 Years |
| Light Transformer | 1 Year |
| Fountain Timers | 1 Year |
All standard Scott Aerator Company products are warranted to the original owner for five years against motor defects in materials or workmanship, no questions asked. All other product components are warranted for one year from the date of purchase. Scott Aerator Company will replace failed parts under warranty when the defective unit is returned to the factory, shipping prepaid by the customer if factory inspection establishes that the part was defective. The unit must be returned to the factory prior to shipment of replacement parts. All parts replaced under this warranty if requested will be returned with shipping prepaid. Neither Scott Aerator Company nor ProtoPond will not be liable for consequential damage nor for any costs associated with removal or attempts to repair components in the field.
