- Aeration Kit for Ponds up to 6 acres
- Maximum operation depth of 18 feet
- 1 hp Stratus RV100 Rotary Vane compressor
- Six valve manifold with pressure relief
- Valved outlet with heat reducing hose and 1/2″ connections

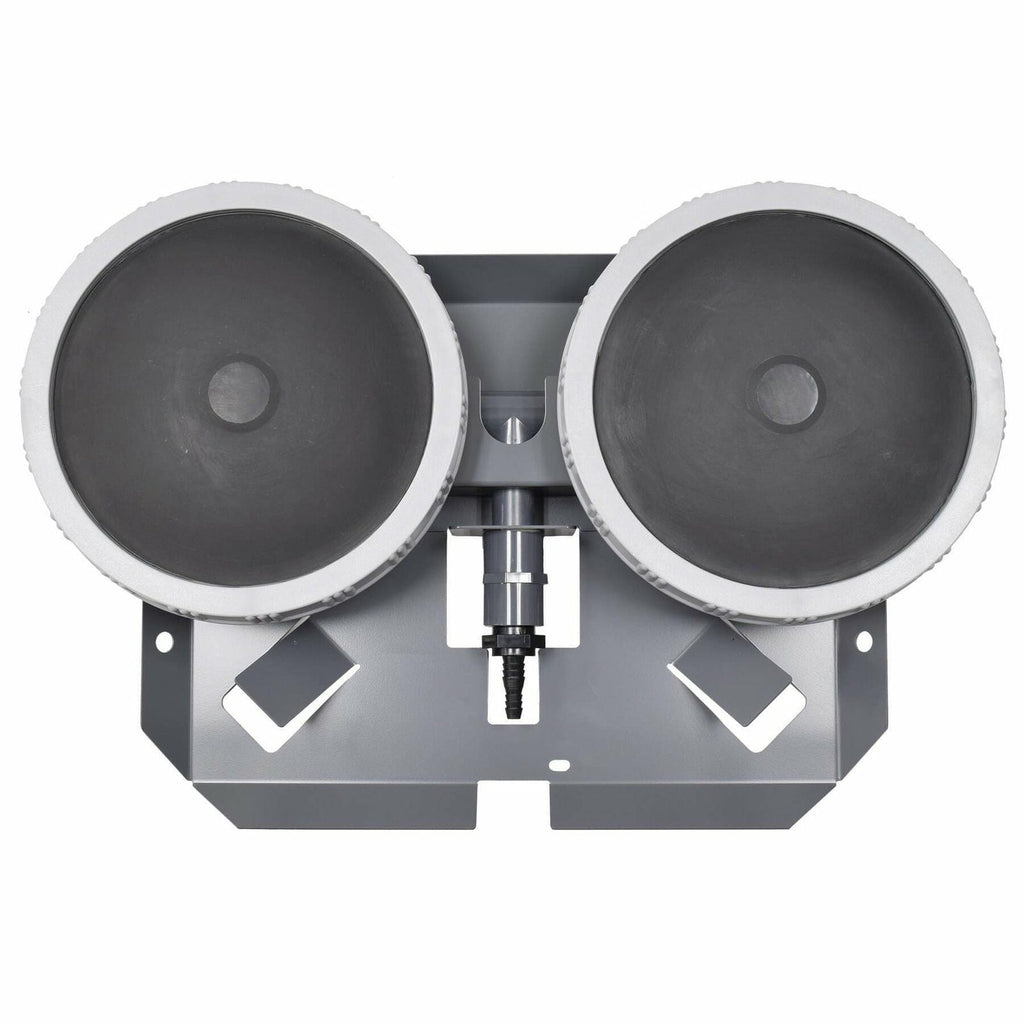

- Six QS2 Quick Sink self weighted dual head air diffusers
- 800′ 1/2″ Quick Sink weighted tubing
- Approximately 2.2 cfm of air flow per diffuser
- Typical operation cost of $3.47 per 24 hours at .09¢ per kWh, actual cost may vary
- PA100W requires weather protection for the compressor
- 1 Year Warranty on Compressor
- 5 Year Warranty on Tubing and Diffusers
- Tubing 800 ft 1/2" Quick Sink
- Horsepower 1 HP
- Voltage 115v or 230v
- Amps 14/7 amps
- Maximum Air Flow 13.5 cfm
- Maximum Depth 18'
- In Aeration Acres Up to 6 acres

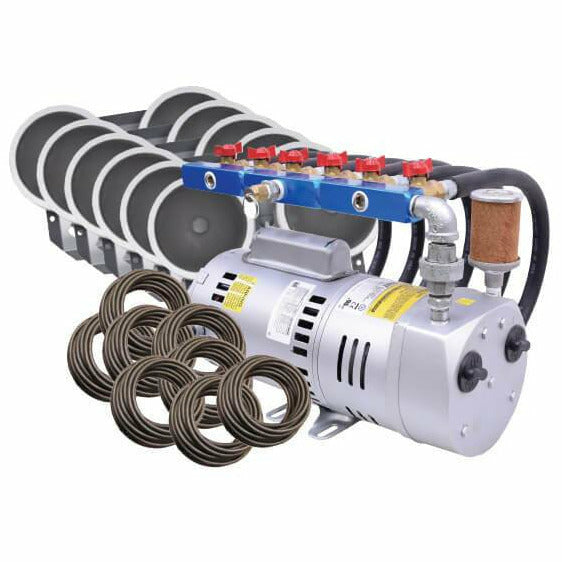

Complete aeration system for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. The PA100W kit also includes six QS2 Quick Sink air diffusers, six valved outlet assembly with pressure relief valve, 800′ of 1/2″ Quick Sink tubing, fittings and clamps.
