- Aeration Kit for Ponds up to 6 acres
- Maximum operation depth of 18 feet
- 1 hp Stratus RV100 Rotary Vane compressor
- Six valve manifold with pressure relief
- Valved outlet with heat reducing hose and 1/2″ connections

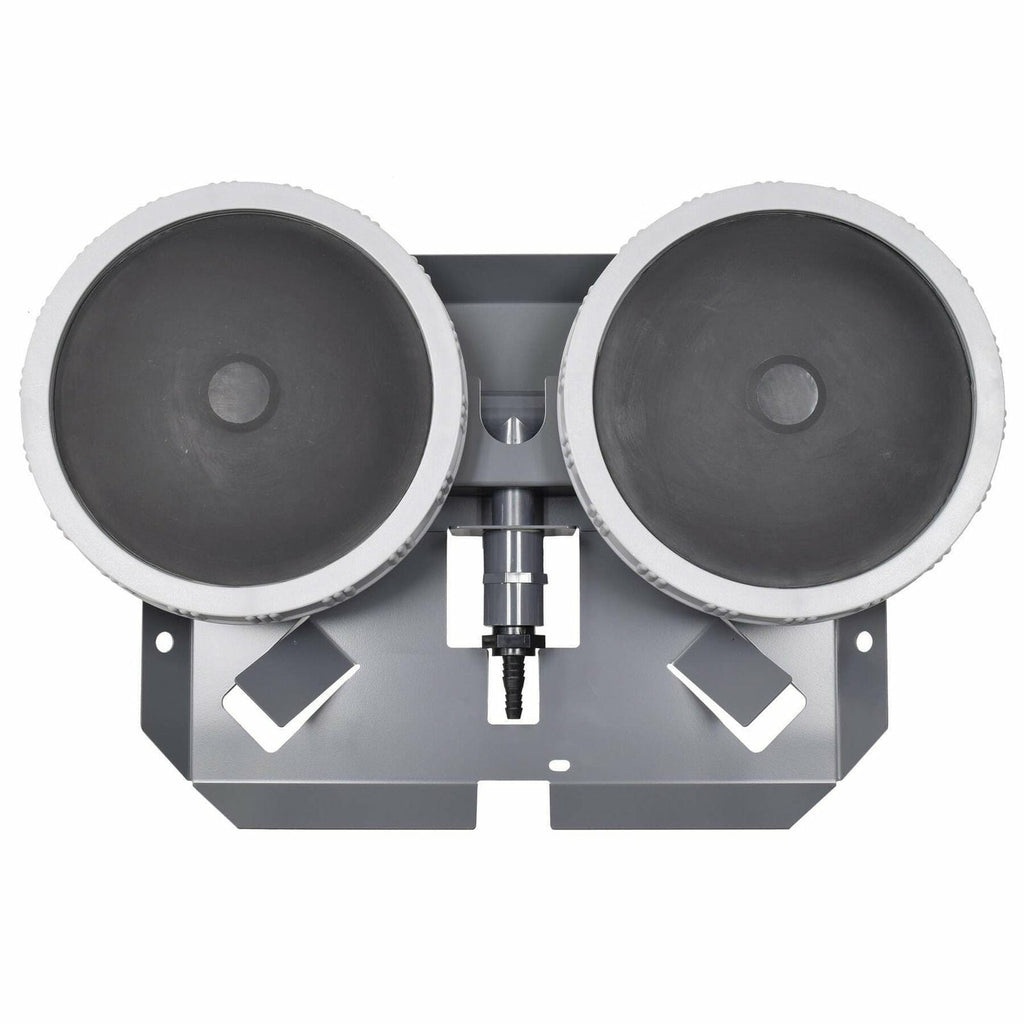

- Six QS2 Quick Sink self weighted dual head air diffusers
- 800′ 1/2″ Quick Sink weighted tubing
- Approximately 2.2 cfm of air flow per diffuser
- Typical operation cost of $3.47 per 24 hours at .09¢ per kWh, actual cost may vary
- 1 Year Warranty on Compressor
- 5 Year Warranty on Tubing, Diffusers and Cabinet
- Shipping Notes Ships by motor freight
- Tubing 800 ft 1/2" Quick Sink
- Horsepower 1 HP
- Voltage 115v or 230v
- Amps 14/7 amps
- Maximum Air Flow 13.5 cfm
- Maximum Depth 18'
- In Aeration Acres Up to 6 acres

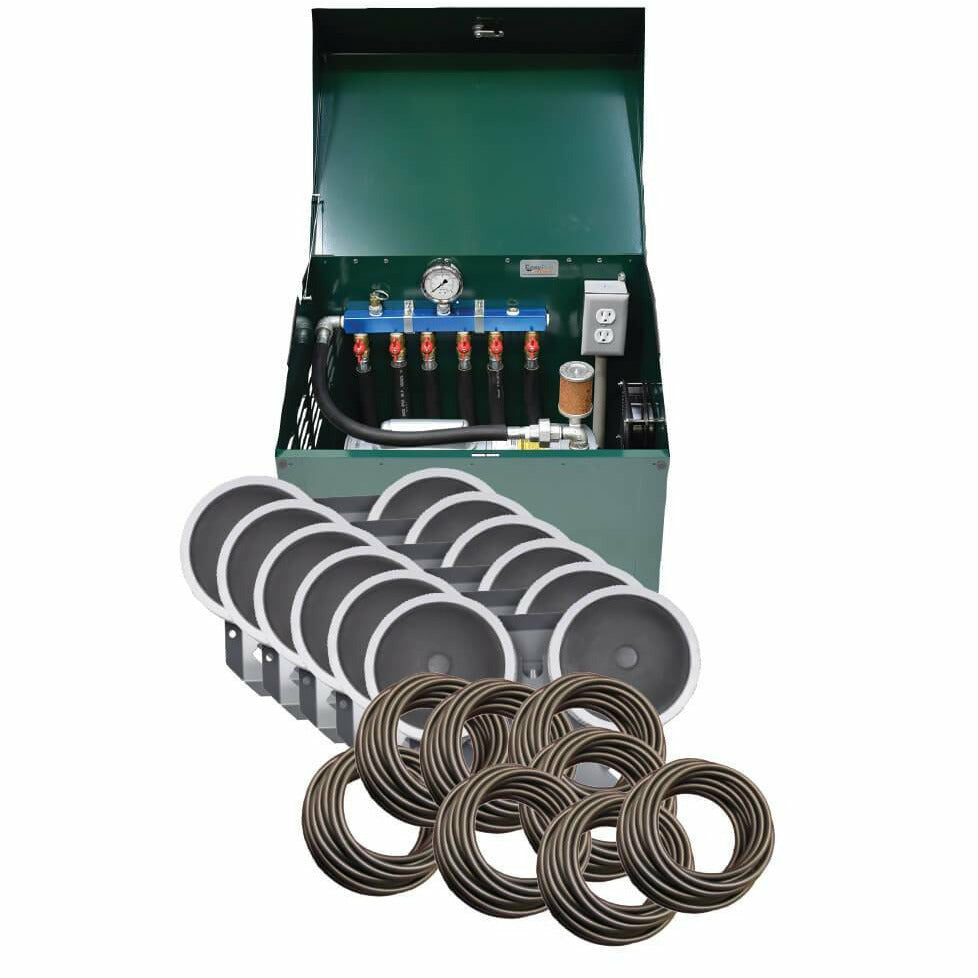

Complete Sentinel Deluxe Aeration System for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. PA100D kit includes compressor, six valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes six QS2 Quick Sink air diffusers, 800′ of 1/2″ Quick Sink tubing and fittings for connections.
Sentinel Deluxe Aeration Systems are designed for convenience and reliability. Each package includes air compressor, valved outlet assembly, pressure gauge and pressure relief valve already installed in our deluxe locking cabinet complete with a cooling fan and an electrical box/outlet already mounted. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Simply set cabinet in desired location, install the air diffusers and connect the tubing!
PA100D features:
