- Aeration Kit for Ponds up to 4 acres
- Maximum operation depth of 18 feet

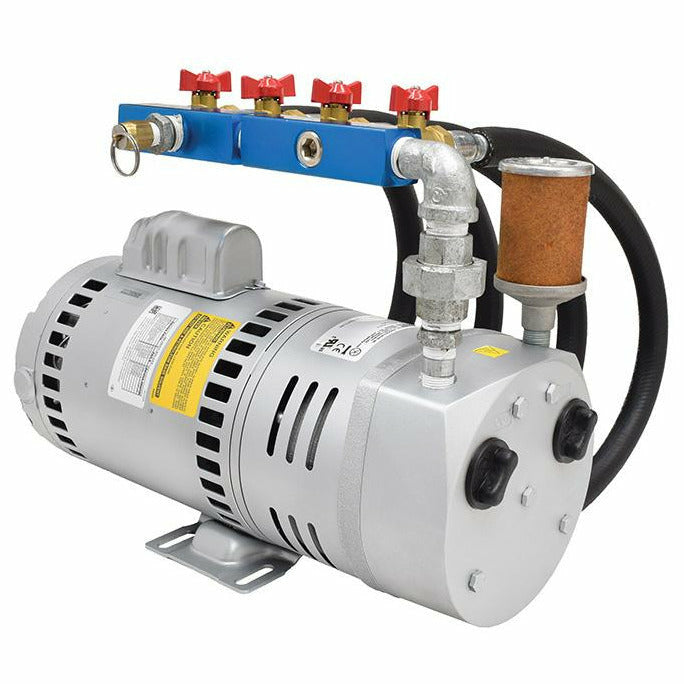

- 3/4 hp Stratus RV75 Rotary Vane compressor
- Four valve manifold with pressure relief
- Valved outlet with heat reducing hose and 1/2″ connections
- Four QS2 Quick Sink self weighted dual head air diffusers
- 600′ 1/2″ Quick Sink weighted tubing
- Approximately 2.4 cfm of air flow per diffuser
- Typical operation cost of $2.98 per 24 hours at .09¢ per kWh, actual cost may vary
- PA75W requires weather protection for the compressor
- 1 Year Warranty on Compressor
- 5 Year Warranty on Tubing and Diffusers
- Tubing 600 ft 1/2" Quick Sink
- Horsepower 3/4 HP
- Voltage 115v or 230v
- Amps 12/6 amps
- Maximum Air Flow 10 cfm
- Maximum Depth 18'
- In Aeration Acres Up to 4 acres

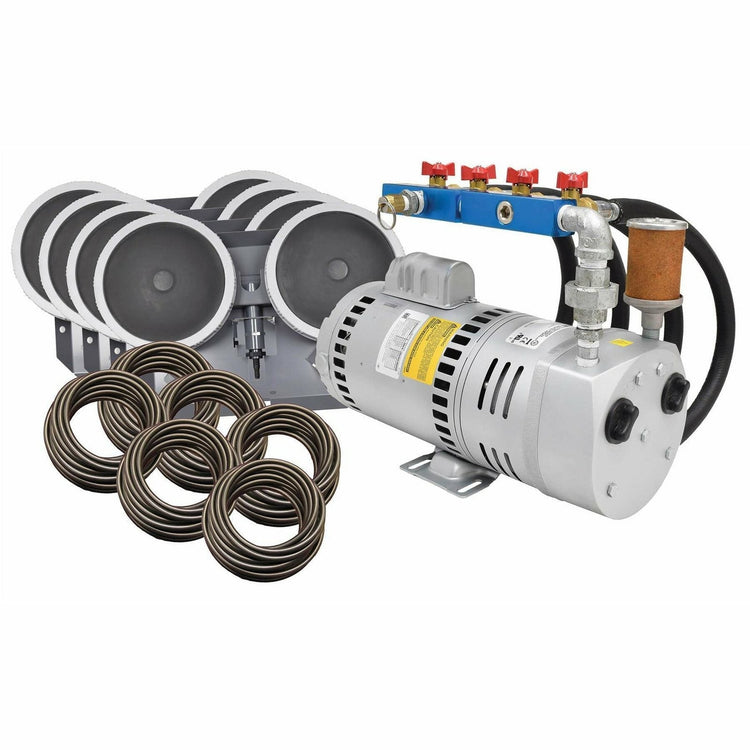

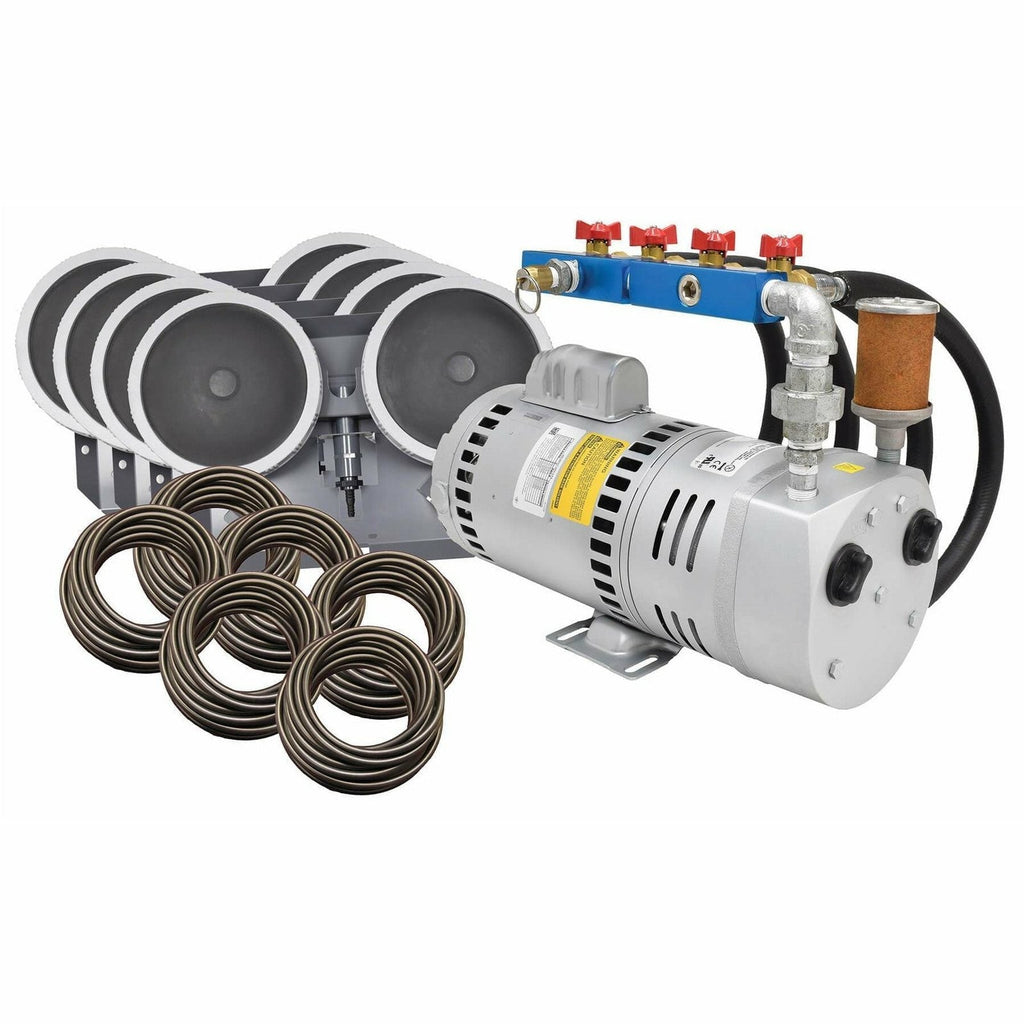

Complete aeration system for ponds up to four acres depending on shape and depth of pond. 3/4 hp Rotary Vane RV75 compressor, 10 cfm, 12 amps, aerates up to 18′ deep. The PA75W kit also includes four QS2 Quick Sink air diffusers, four valved outlet assembly with pressure relief valve, 600′ of 1/2″ Quick Sink tubing, fittings and clamps.
